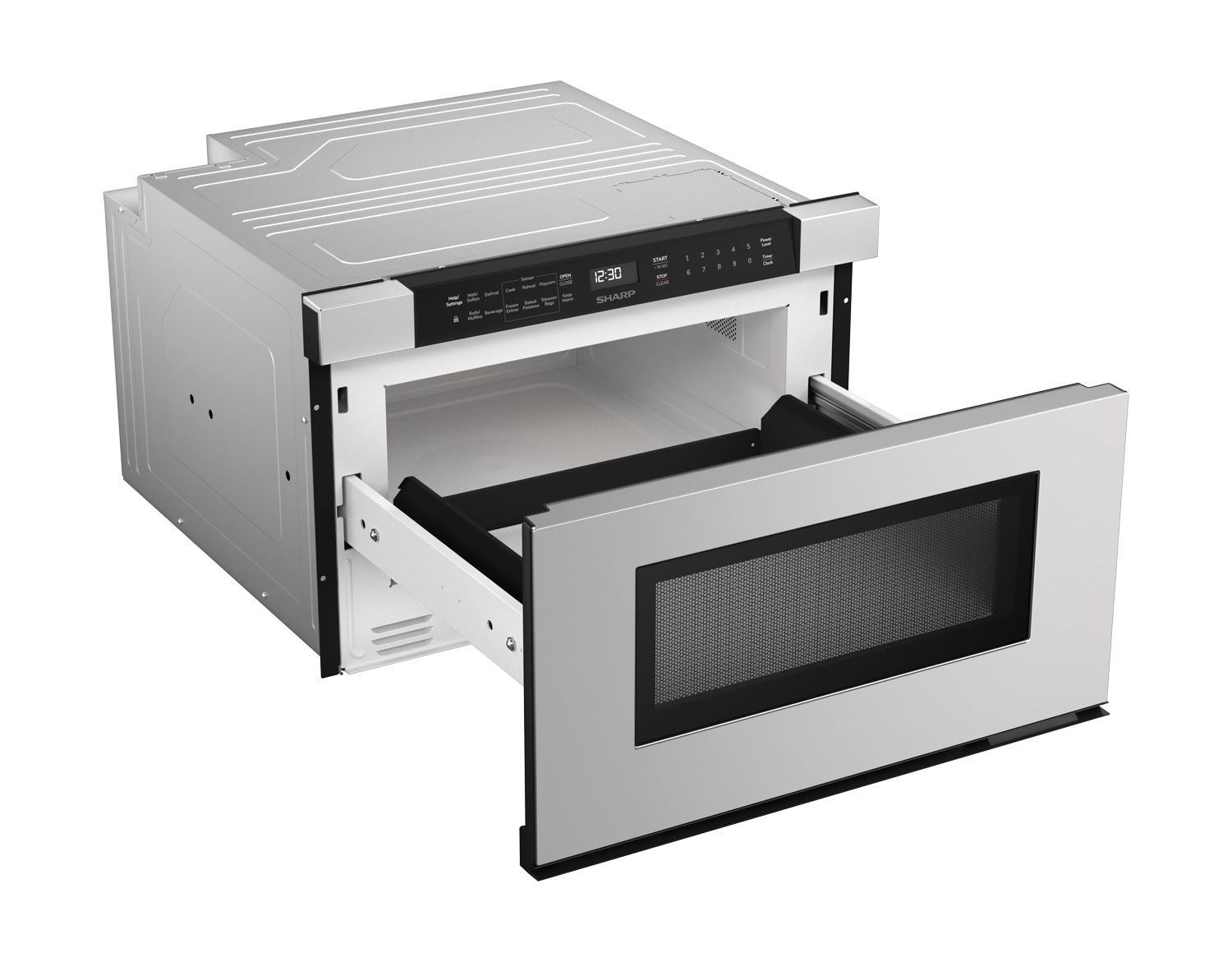

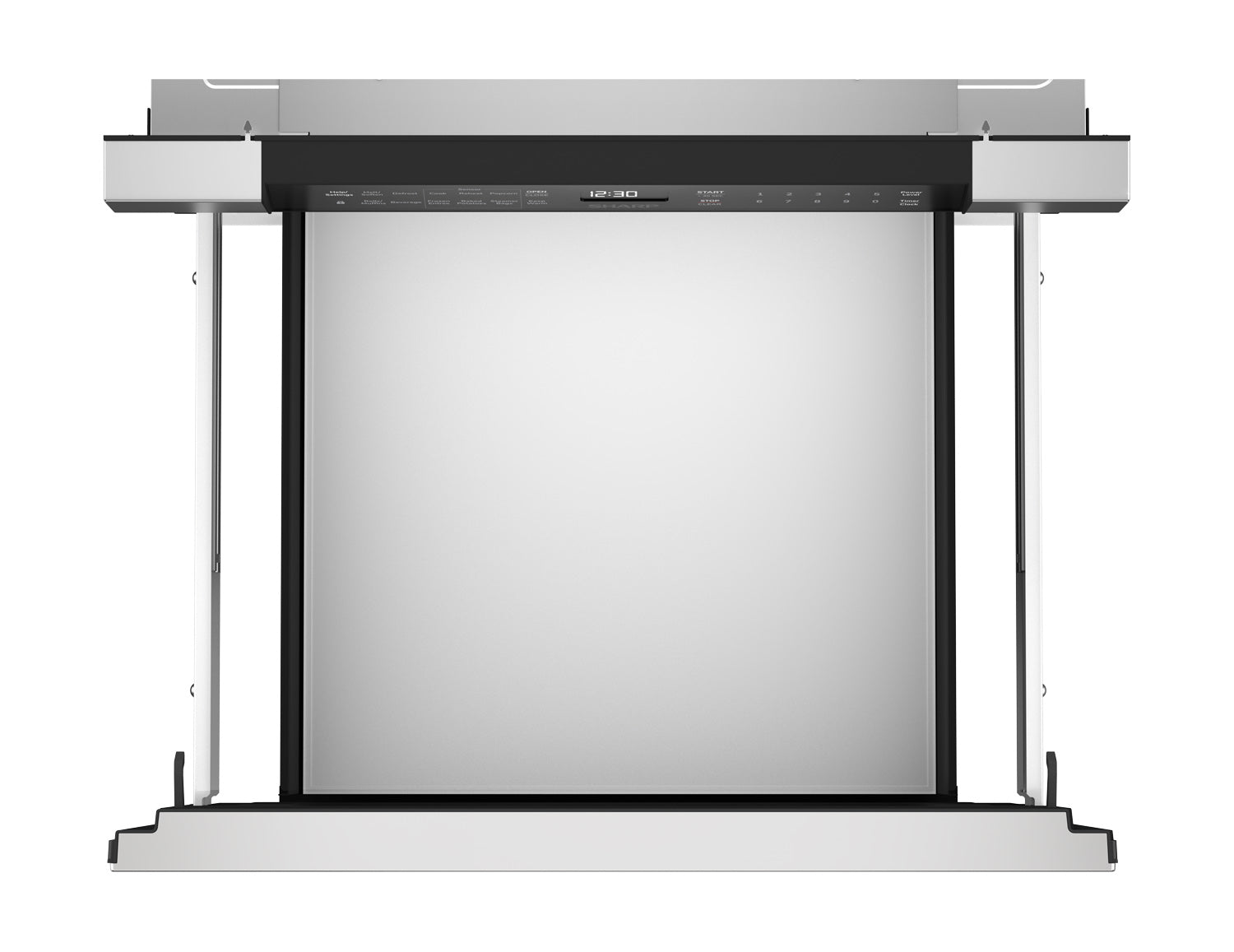

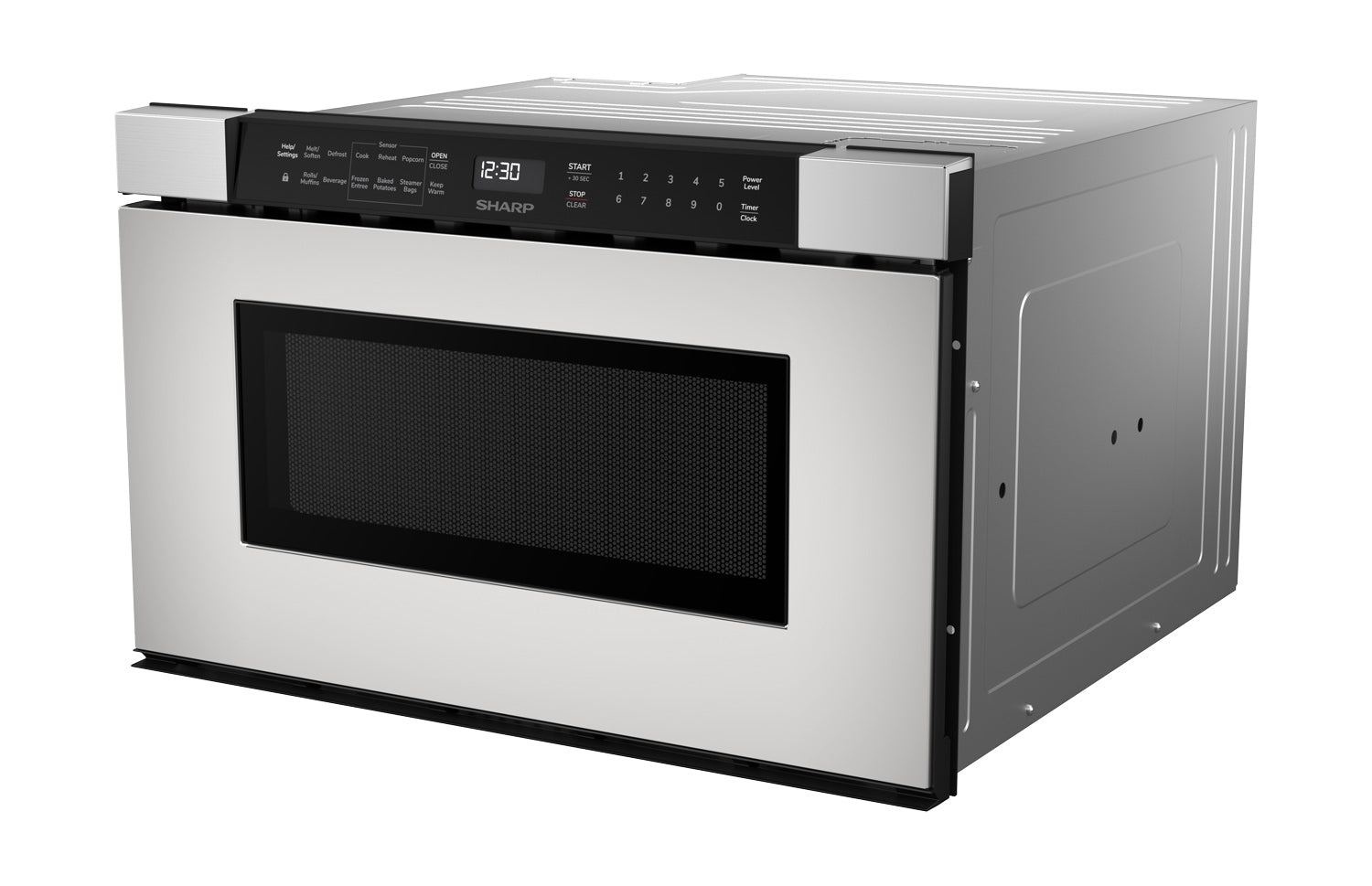

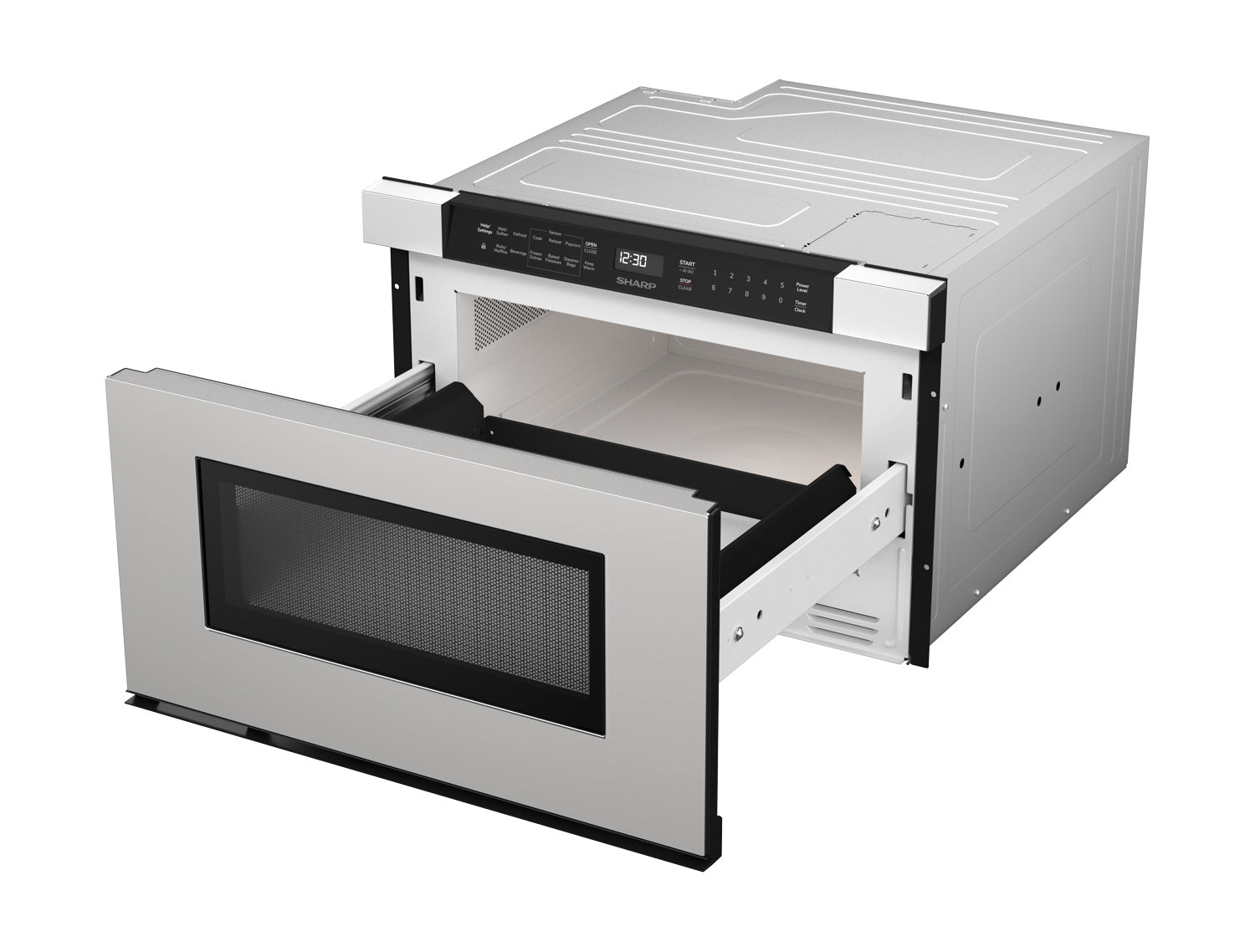

24 in. 1.2 cu. ft. Built-In Stainless Steel Microwave Drawer Oven (SMD2440JS)

$1,199.99
Vendor: Sharp
SKU: SMD2440JS
Categories: Microwave
Description

Important: This product ships only to Arizona and California.



24" MWO Drawer, 1.2 cu. ft. 950W, Sensor, Angled Controls S/S

      • 1.2 cu. ft., 950 Watt, Microwave Drawer™ Oven
      • Install Below an Island, Peninsula, or Standard Cabinetry
      • Sensor Cook Menu for Precise Cooking and Reheating
      • Angled Touch Controls for Easy Viewing and Operation
      • Includes Built-In Airflow Control for Flush Installation
      • Cooking Space Large Enough for a 4-qt Casserole Dish or a 20 oz. Beverage
      • Optional Pedestal Accessory (SKMD24U0ES) Slides Under the Counter for Convenient Installation
      • Enable Control Lock to Prevent Accidental Operation

      Features


      Easy to Use

      • Sensor Cook Menu for precise cooking and reheating
      • Smart & EasyTM settings to cook favorites like baked potatoes, popcorn, and steamer bags
      • Easy Touch Automatic Drawer system gently opens the drawer with the touch of a button

      Compliments Your Style

      • Angled Touch Controls for easy viewing and operation
      • Easy-to-clean stainless-steel finish

      Design Flexibility

      • Install below an island, peninsula, or standard cabinetry
      • Includes built-in airflow control for flush installation

      Capacity

      • Fits 4 qt. casserole dish
      • Tall enough for a 20-oz. beverage
      • 1.2 cubic feet; 950 watts

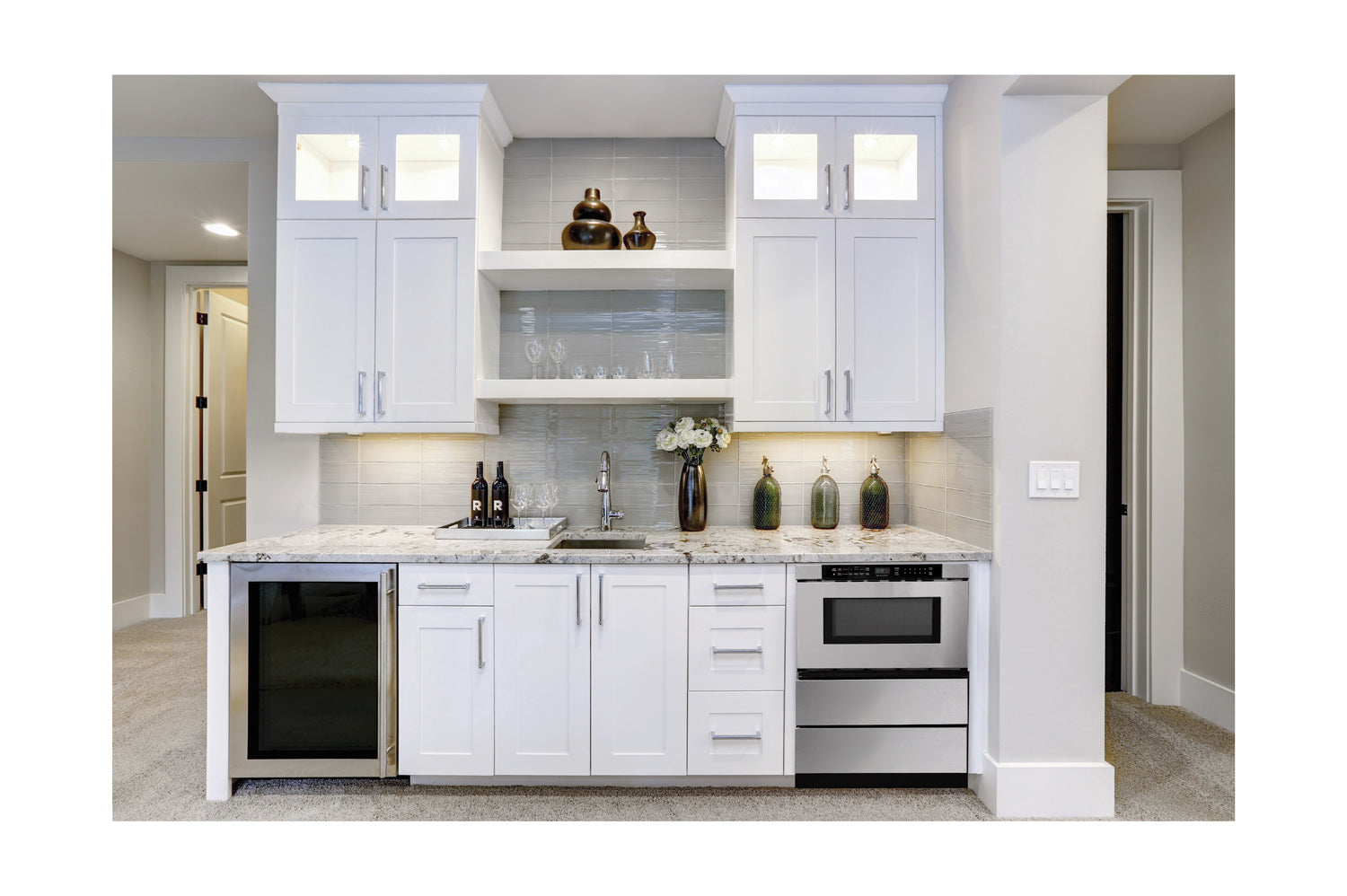

      Designed for Your Dream Kitchen

      The Sharp® SMD2440JS Microwave DrawerTM Oven has been designed to complement the widest range of kitchen styles and appliances. The sleek, low-profile design and stainless-steel finish beautifully complement any kitchen.

      Convenient Features

      The SMD2440JS is packed with thoughtful features like the Steamer Bag preset that easily steams a bag of frozen veggies up to 17oz. The Keep Warm feature can hold warm dishes for up to 30 minutes and the Rolls/Muffins feature warms rolls, muffins, or bagels from room temperature, refrigerated or frozen.

      Easy Touch Open

      The Easy Touch Automatic Drawer system eases open with the touch of a button. Simply give the Microwave Drawer Oven a small nudge and it smoothly shuts for you. The even, gliding action and solid construction prevents liquids from spilling during opening and closing.

      Cooking and Cleaning with Ease

      Easily lift hot foods from the drawer or stir dishes without removing them. The SMD2440JS can be wiped with a damp cloth inside and out for a quick and easy cleanup.

      ADA Compliance

      ADA COMPLIANT SHARP APPLIANCES


      ADA Compliant Home Appliances

      Sharp Home Appliances can help to make your home accessible to people with disabilities.

      The Americans with Disabilities Act establishes accessibility guidelines for many products. Sharp offers an array of appliances that can be integrated into an ADA compliant kitchen. A touch-control microwave oven placed at counter height provides cooking access for people of various ages and physical abilities.

      ADA Compliant Microwave Ovens

      To be part of an ADA compliant kitchen, a microwave oven must meet the following requirements:

      • Maximum high forward reach for controls and operating mechanisms is 48"; maximum low forward reach is 20".
      • Controls and operating mechanisms must be operable with one hand and shall not require tight grasping, pinching or twisting of the wrist. The force required to activate controls shall be no more than 5 lbs.

      Specifications

      FEATURES

      • Finish: Stainless Steel
      • Drawer Opening: Open / Close Button
      • Width: 24"
      • Capacity: 1.2 cu. ft.
      • Output Power: 950W
      • Interior Light: Incandescent
      • Timer / Clock: Yes
      • Open / Close: Yes
      • Start / +30 Sec: Yes
      • Stop / Clear: Yes
      • Power Level: 11
      • Control Lock: Yes
      • Help / Settings: Yes
      • Demo Mode: Yes
      • End of Cooking Reminder: Yes

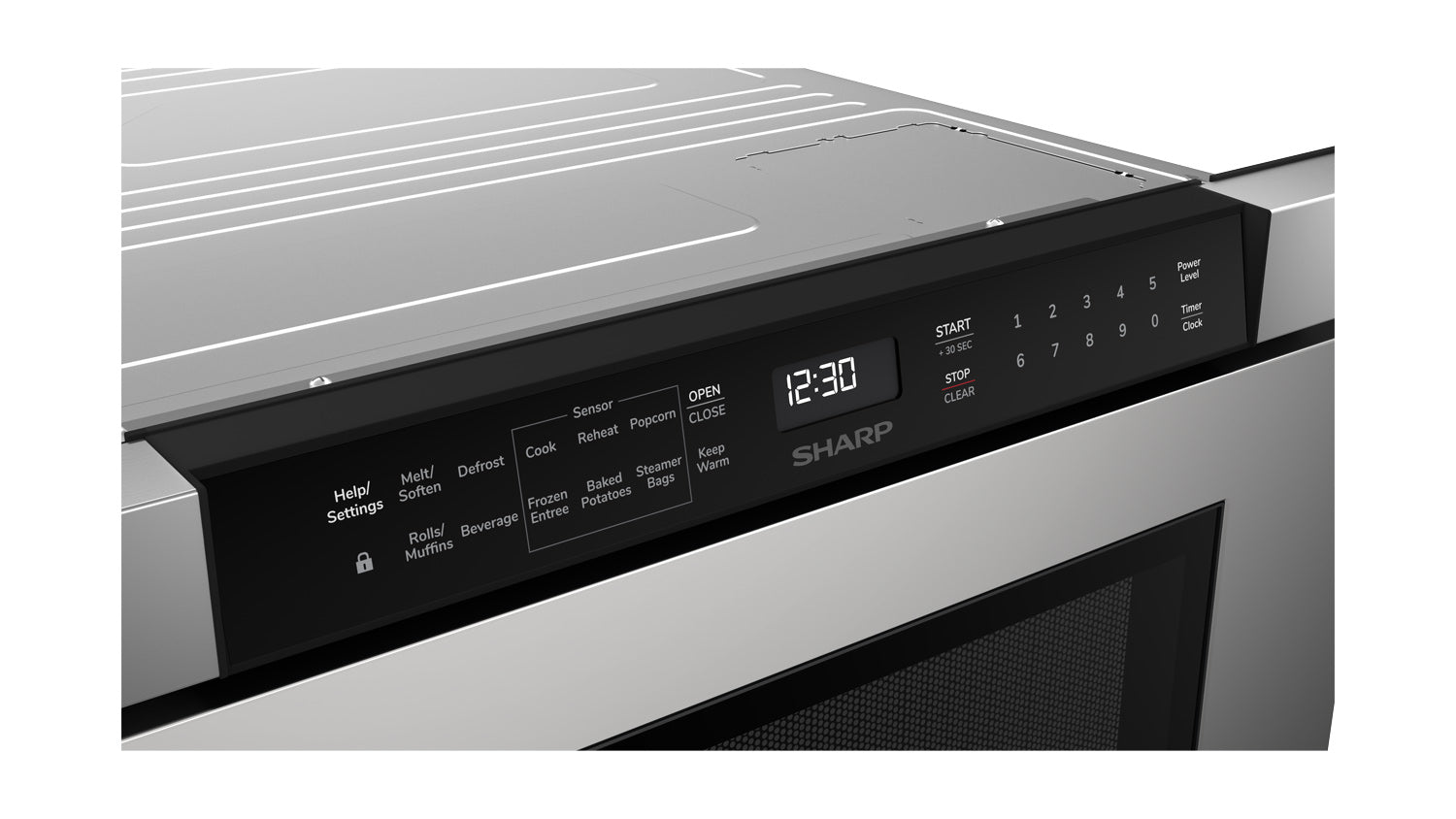

      CONTROL PANEL

      • Control Panel Location: Center/Top
      • Control Panel Type: Membrane
      • Display Type: LCD 7-Segment
      • Display Color: White on Black Background

      COOKING / MENU PRESETS

      • Popcorn: Yes, Sensor
      • Reheat: Yes, Sensor
      • Sensor Cook: Quick Fresh Vegetables, Longer Fresh Vegetables, Frozen Vegetables, Sweet Potatoes, Ground Meat, Fish/Seafood, White Rice, Brown Rice
      • Frozen Entrée: Yes, Sensor
      • Baked Potatoes: Yes, Sensor
      • Steamer Bags: Yes, Sensor
      • Defrost: Ground Meat, Steaks/Chops, Boneless Poultry, Bone-In Poultry, Roast, Casserole, or Soup
      • Rolls / Muffins: Fresh, Frozen
      • Melt, Soften & Warm Options: Butter, Chocolate, Ice Cream, Cream Cheese, Syrup, Dessert Toppings
      • Other Menus: Beverage Reheat, Hot Water, Hot Cereal
      • Keep Warm: Yes

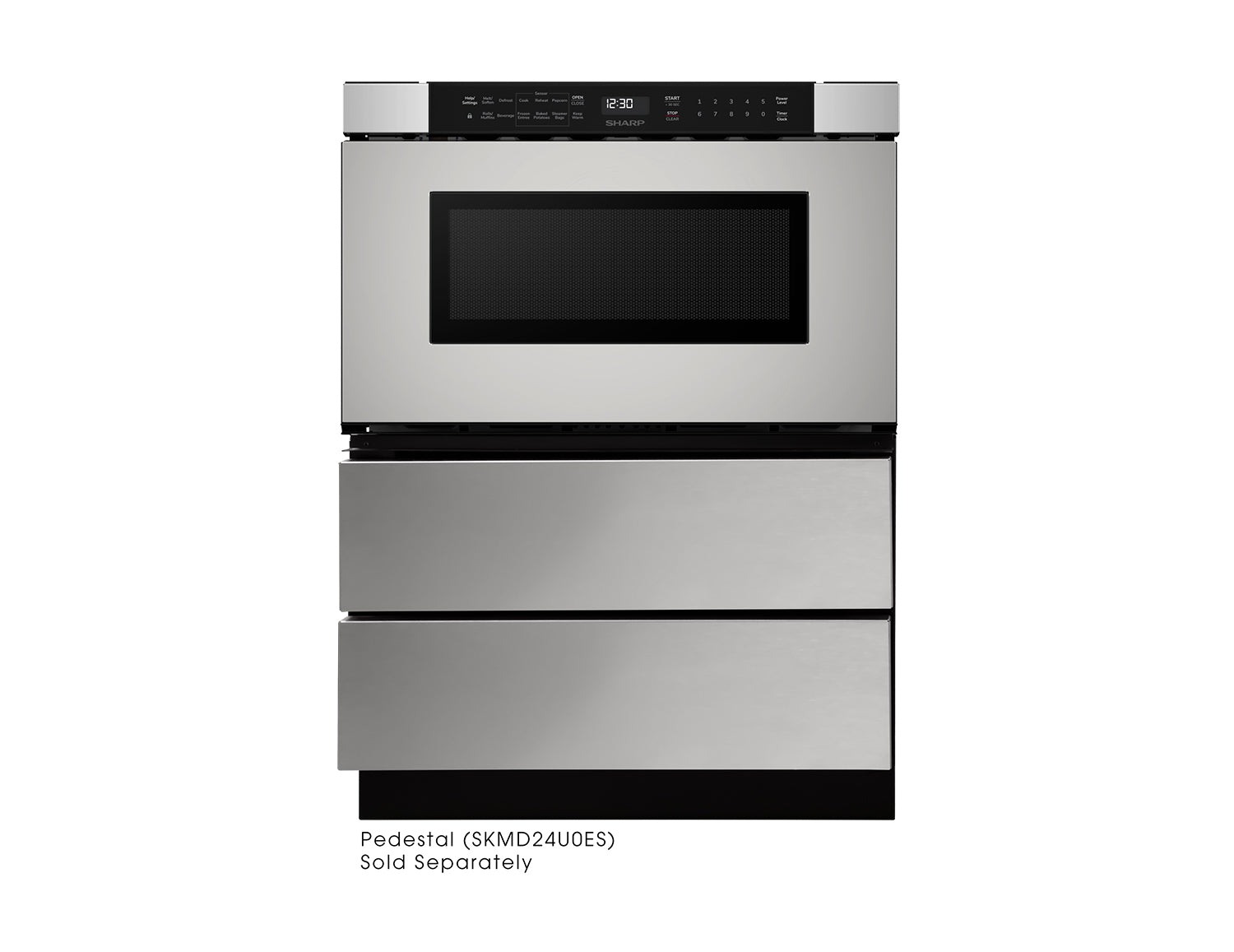

      OPTIONAL ACCESSORY

      • Product Name: Drawer Under-the-Counter Pedestal
      • Model: SKMD24U0ES
      • Color: Stainless Steel or Custom Panel Ready
      • UPC: 074000620865

      ADDITIONAL SPECIFICATIONS

      • Installation: Built-In-Ready, Standard or Flush
      • Power Source: 120V, 60Hz / 15A / 1.67 kW

      DIMENSIONS & WEIGHT

      • Cavity Interior: 17-5/16" x 21-11/16" x 7-1/8"

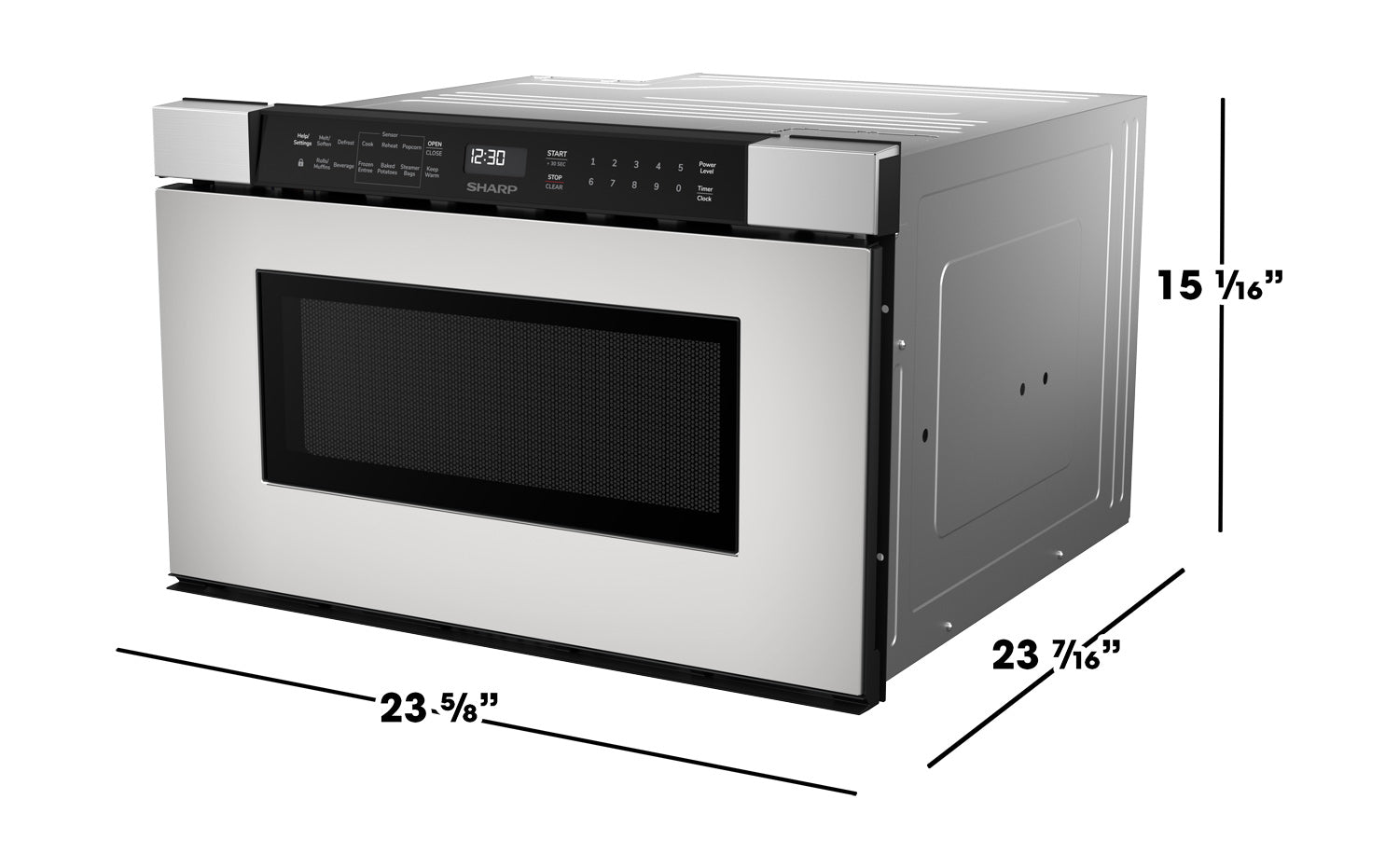

      • Product Dimensions: 23-5/8" x 23-1/4" x 15"
      • Shipping Dimensions: 27-11/16" x 29-1/16" x 21-1/2"
      • Product Weight / Shipping Weight: 72.0 lbs. / 83.6 lbs.

      WARRANTY / UPC

      • Parts: 1 Year
      • Labor: 1 Year
      • Magnetron Tube: 4 Years total (part only)
      • UPC: 074000622050



      More Information

      24 in. 1.2 cu. ft. 950W Sharp Easy Open Stainless Steel Microwave Drawer Oven

      Innovative thinking led to the world's first Microwave Drawer™ Oven, an appliance that has helped revolutionize kitchen design and microwave oven placement. Now Sharp introduces the next generation of this successful appliance – larger, sleeker and more accessible than ever. The KB6524PS microwave drawer fits in the same space as other Sharp 24-inch models, yet it's larger 1.2 cubic feet interior is tall enough to hold a 20 oz. cup from your favorite take-out coffee store. Plus, there are two convenient ways to open or close the drawer – either pull or push the Easy Open handle or simply touch the Auto-Touch™ control panel.



      With more convenience features, quieter operation and a more integrated design, the KB6524PS microwave drawer really is the best solution yet for where to place the microwave.

      Browse our full range of Sharp microwave drawers to find the right model for your home.

      Documents

      Operation Manual


      Spec Sheet


      Installation Manual
