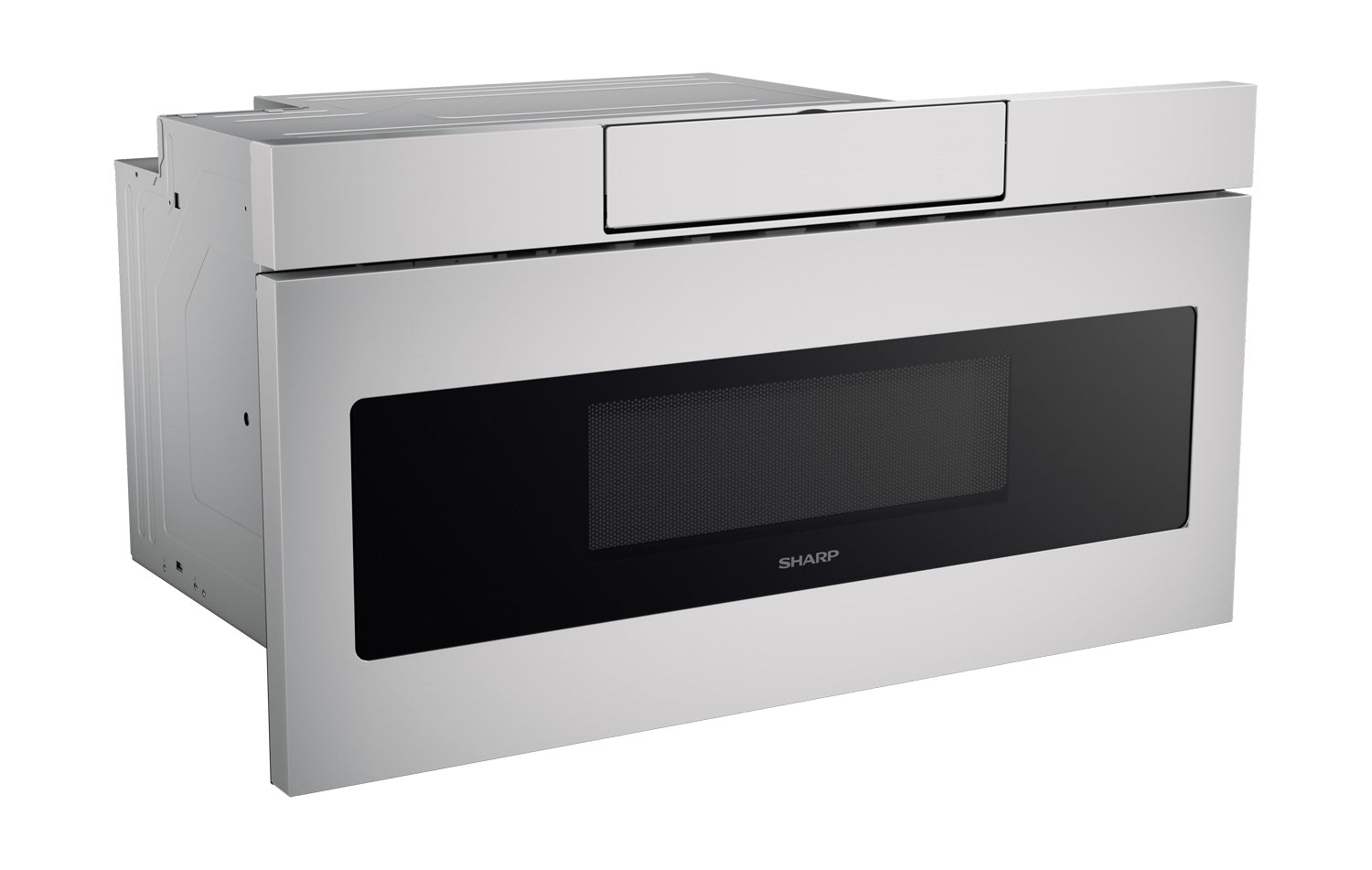

30 in. 1.2 cu. ft. 950W Sharp Stainless Steel Microwave Drawer Oven (SMD3070ASY)

$1,399.99
Vendor: Sharp
SKU: SMD3070ASY
Categories: Microwave Wall Oven
Description

Important: This product ships only to Arizona and California.



30" MWO Drawer, Concealed Controls, 1.2 cu. ft. 1000W, Sensor, S/S

            • Easy Touch Automatic Drawer System Smoothly Opens and Enables Hands-Free Close
            • Convenient Kitchen Placement Allows for Easier Cooking, Saves Prep and Clean up Time
            • Concealed Control Panel Opens to an Easy-to-Read and Operate 45° Angle
            • Cooking Space Large Enough for a 4 qt Casserole Dish or a 20 oz Beverage
            • Cooking Performance from One of the Most Trusted Brands in Microwaves

            Features

            Easy to Use

            • Easy Touch automatic drawer
            • Easier cooking and cleanup

            Compliments Your Style

            • Low-profile design
            • Hidden controls
            • Stainless-steel finish

            Design Flexibility

            • Install below an island, peninsula or standard cabinetry or below a wall oven.
            • Accessories available (SKMD24F0AS, SKMD30F0AS).

            Capacity

            • Fits 4 qt. casserole dish
            • Tall enough for a 20-oz. tall coffee cup
            • 1.2 cubic feet; 950 watts

            Designed for Your Dream Kitchen

            The Sharp SMD3070ASY Microwave Drawer Oven has been designed to complement the widest range of kitchen styles and appliances. The sleek, low-profile design and a stainless-steel finish beautifully complement any kitchen.

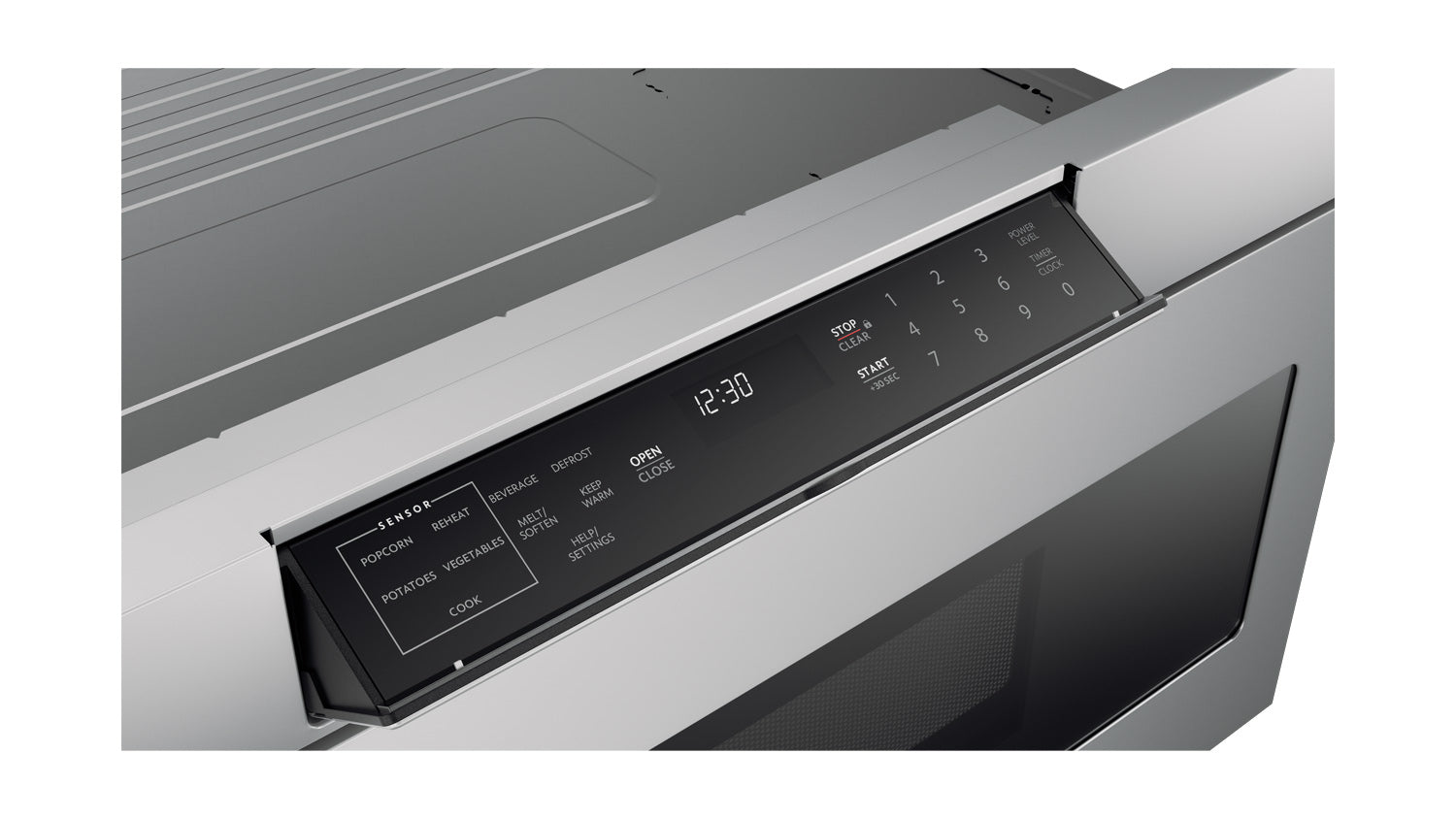

            Hidden Control Panel

            The SMD3070ASY Microwave Drawer Oven boasts an easy-to-read display that disappears until you need it. The concealed control panel opens at a 45-degree angle, so it’s easy to read and operate.

            Convenient Placement Options

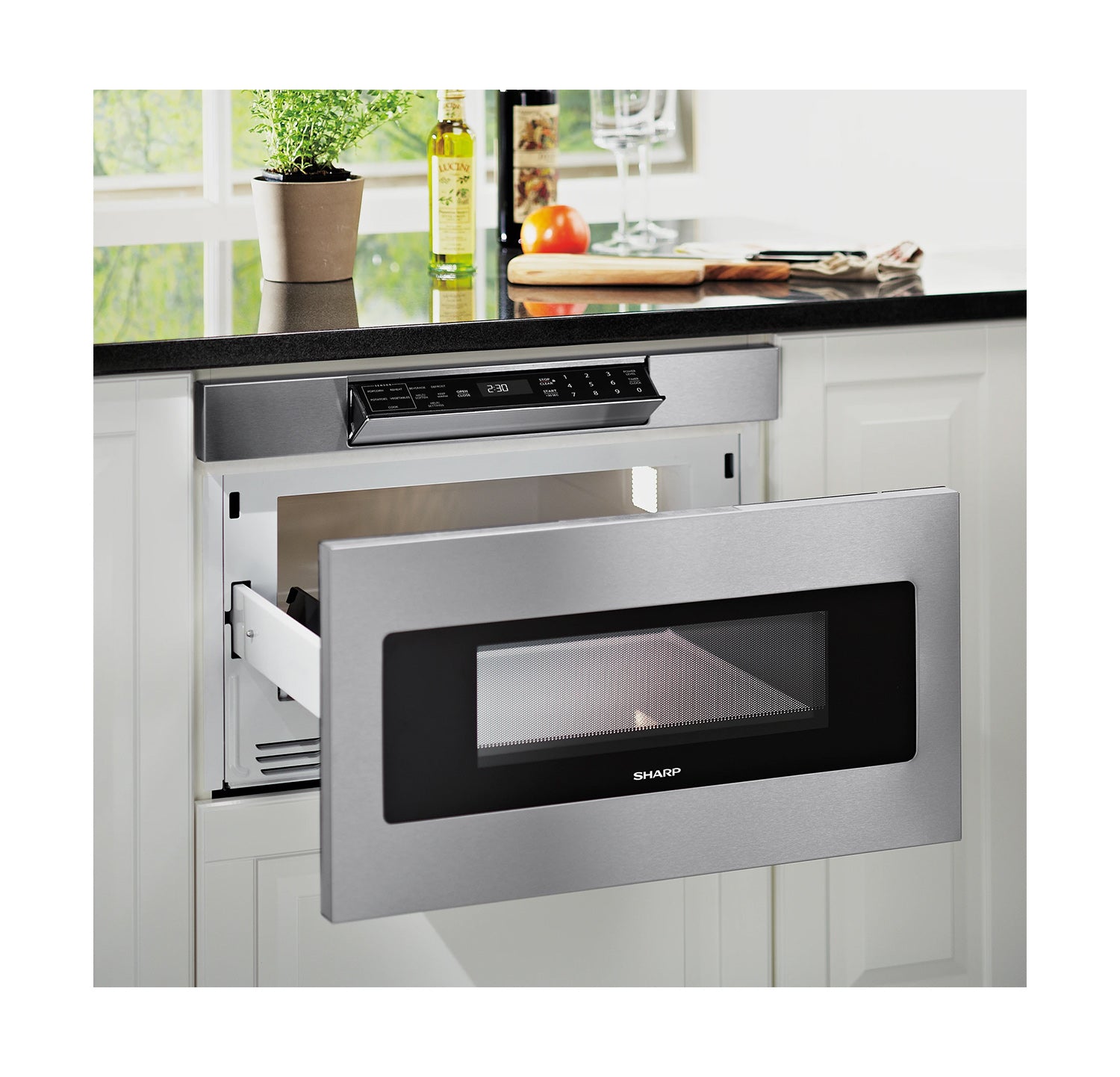

            The SMD3070ASY 30-inch Microwave Drawer Oven offers flexible placement options below an island, peninsula or standard cabinetry, or can be installed below your wall oven.

            USER-FRIENDLY FEATURES MAKE COOKING AND REHEATING EASY


            Easier Cooking and Cleanup

            The Sharp Stainless Steel Microwave Drawer Oven makes cooking and cleaning easier by putting the microwave at an accessible height. Easily lift hot foods from the Drawer. Stir dishes without removing them. And low sides and a virtual Carousel make cleaning a breeze.

            Room to Spare

            The 30-inch Microwave Drawer Oven offers plenty of cooking space, with room enough for a 4-quart casserole dish or a 20-oz. beverage from your favorite coffee shop.

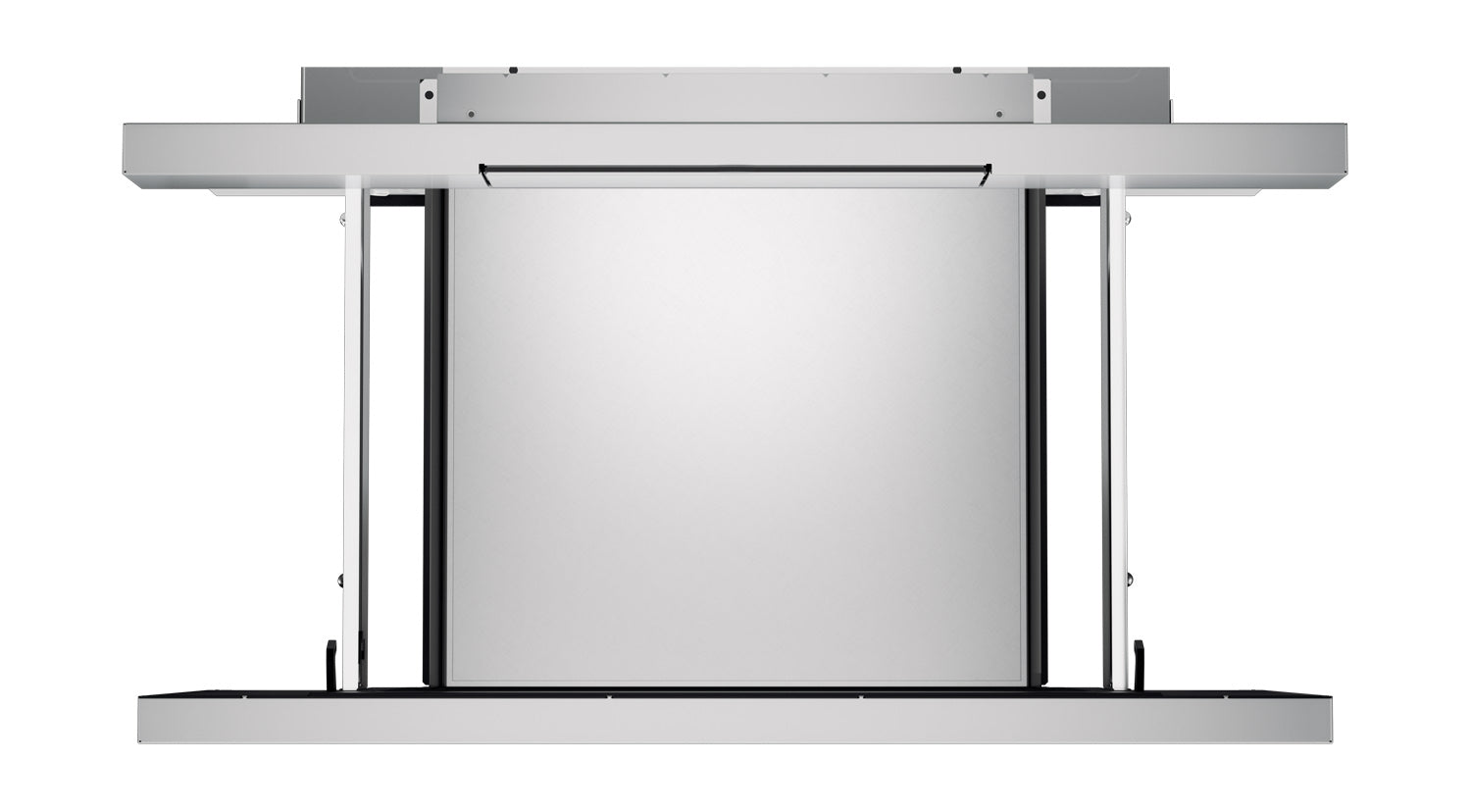

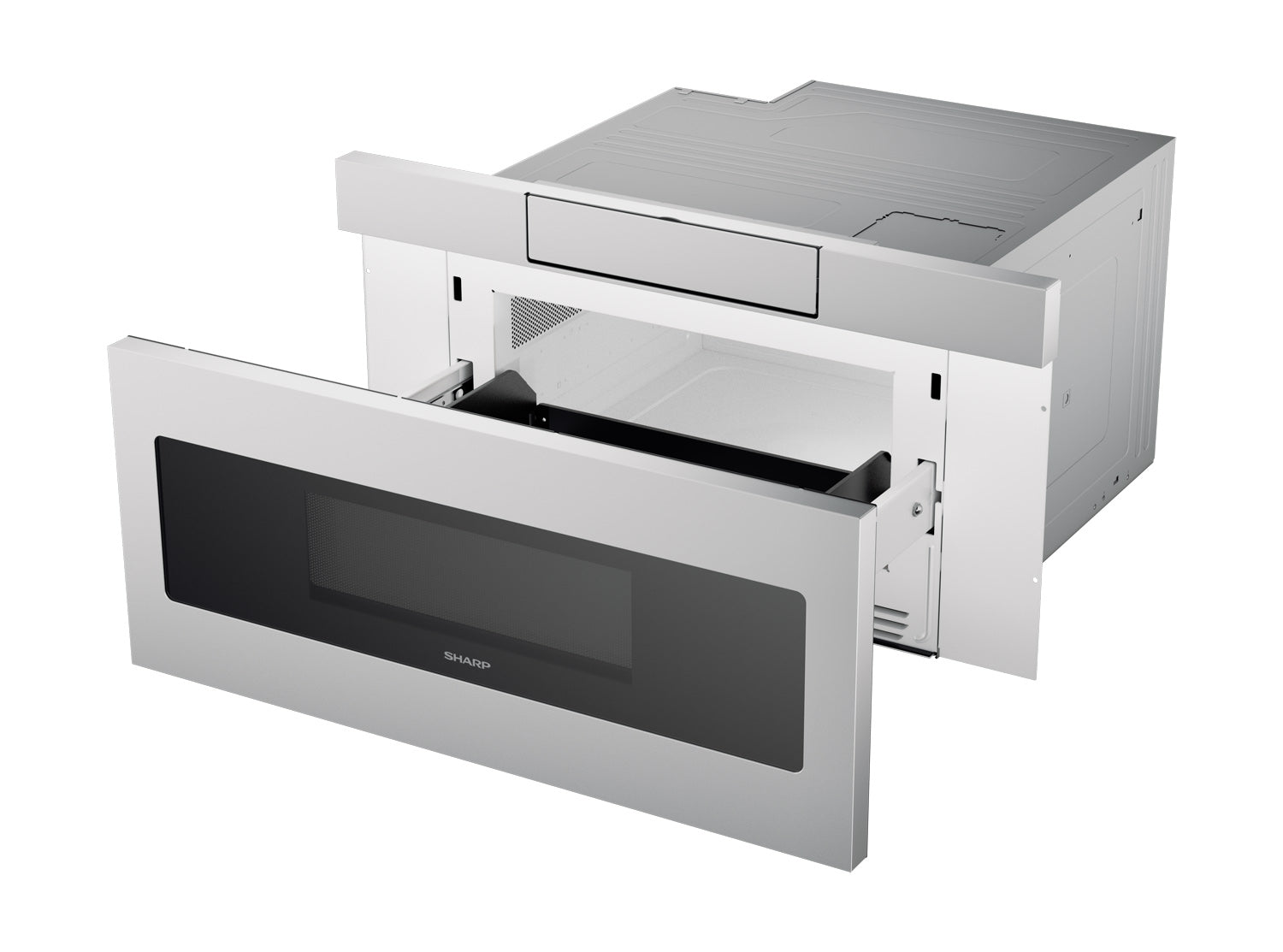

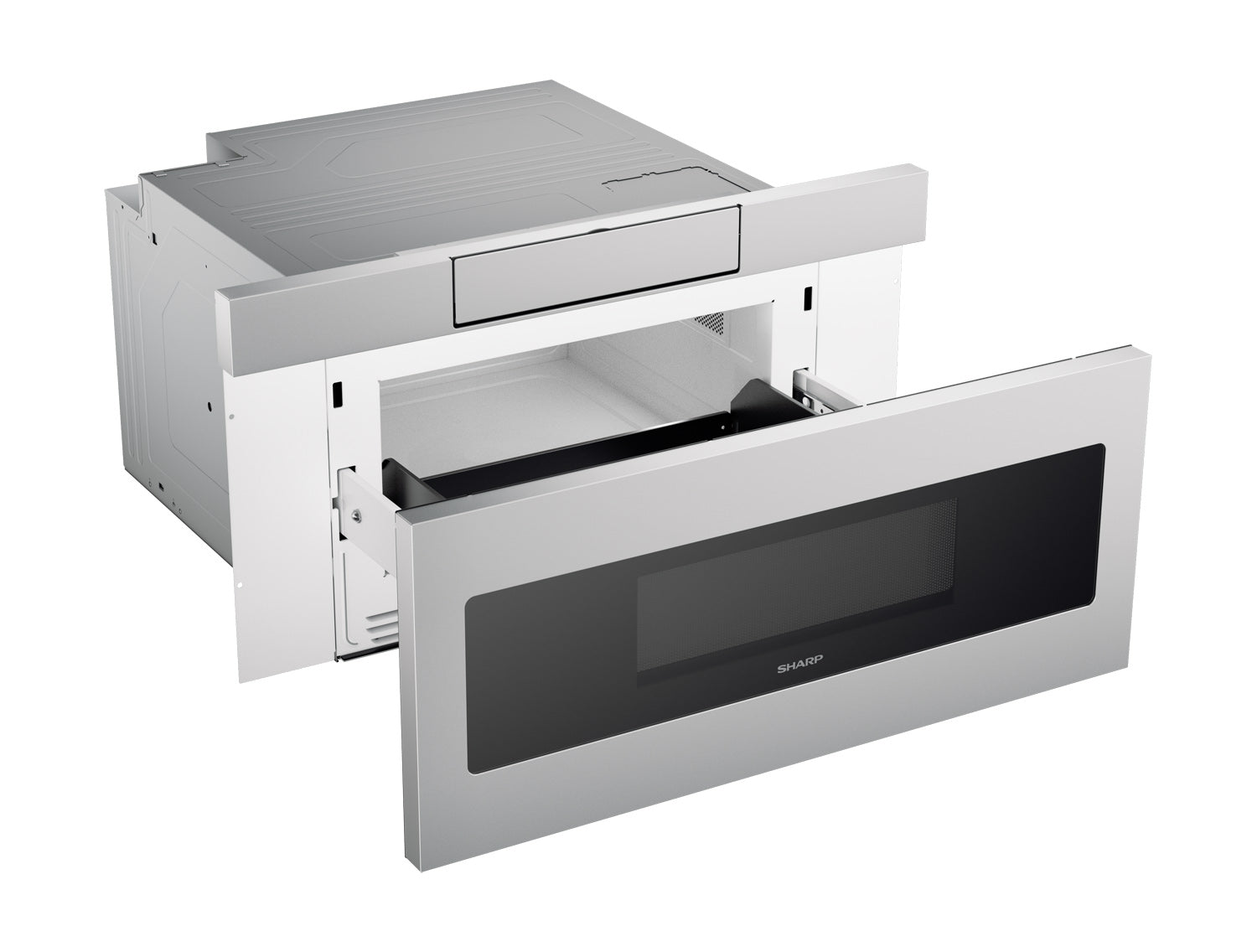

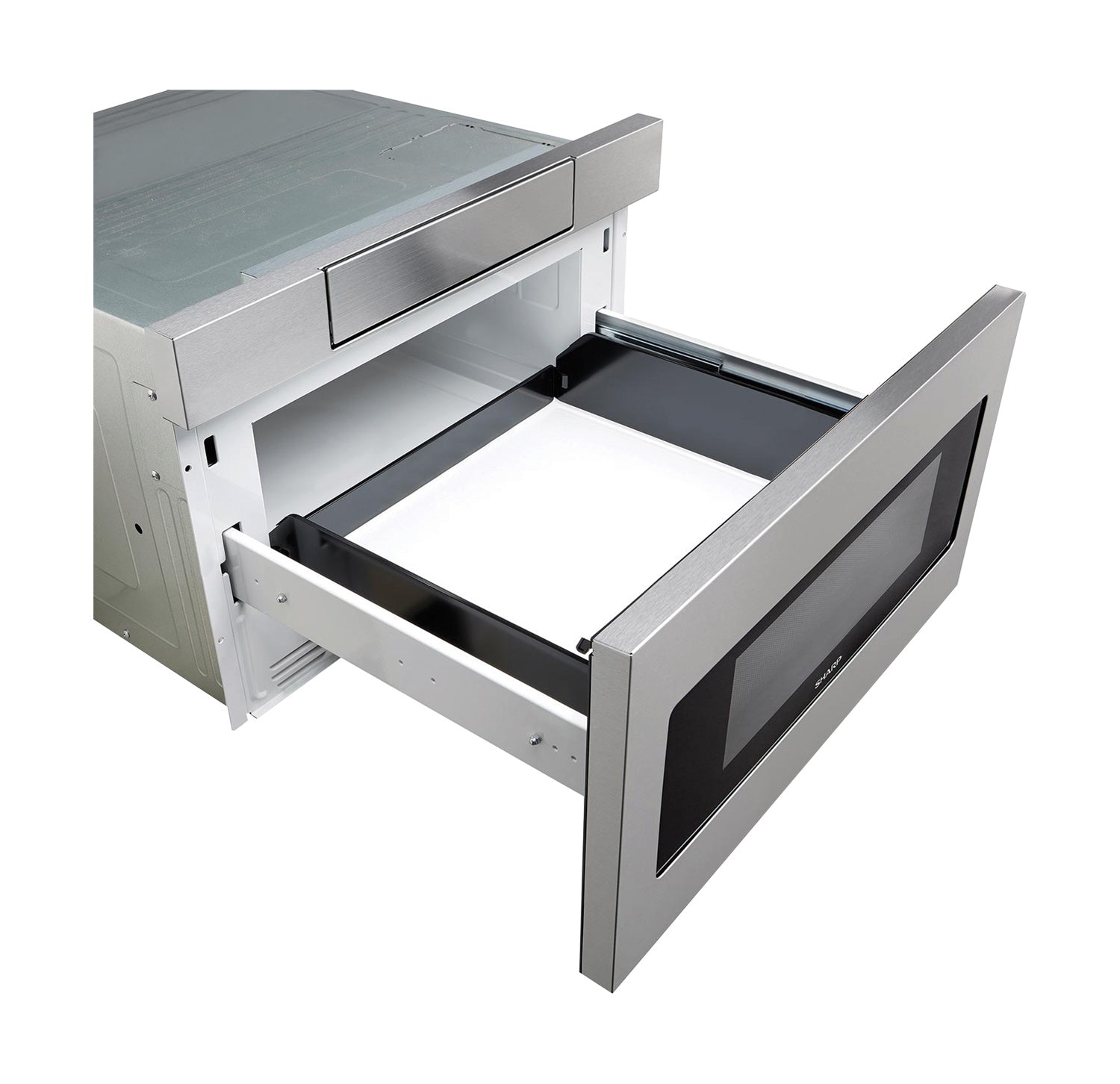

            Easy Touch Automatic Drawer System

            Sharp’s exclusive Easy Touch Automatic Drawer system eases open with a gentle pull or the touch of a button. Give the Microwave Drawer Oven a small nudge and it smoothly shuts for you. The even, gliding action and solid construction prevents liquids from spilling during opening and closing.

            ADA Compliance


            ADA COMPLIANT SHARP APPLIANCES

            ADA Compliant Home Appliances

            Sharp Home Appliances can help to make your home accessible to people with disabilities.

            The Americans with Disabilities Act establishes accessibility guidelines for many products. Sharp offers an array of appliances that can be integrated into an ADA compliant kitchen. A touch-control microwave oven placed at counter height provides cooking access for people of various ages and physical abilities.

            ADA Compliant Microwave Ovens

            To be part of an ADA compliant kitchen, a microwave oven must meet the following requirements:

            • Maximum high forward reach for controls and operating mechanisms is 48"; maximum low forward reach is 20".
            • Controls and operating mechanisms must be operable with one hand and shall not require tight grasping, pinching or twisting of the wrist. The force required to activate controls shall be no more than 5 lbs.



            Specifications

            FEATURES

            • Finish: Stainless Steel
            • Drawer Opening: Easy Touch Automatic
            • Capacity: 1.2 Cu. Ft. (holds 9" x 13" dish)
            • Output Power: 950 watts
            • Sensor Cook, Reheat, and Popcorn: Yes, 12 settings
            • Reheat Auto Settings: 2 settings
            • Defrost Auto Settings: 6 settings
            • Microwave Keep Warm Setting: Yes, up to 30 minutes
            • Clock: Yes
            • Minute Plus™: Yes
            • Interior Oven Light: Yes
            • Kitchen Timer: Yes
            • Control Lock: Yes
            • Demonstration Mode: Yes
            • Built-In Ready for Easy Installation: Yes

            CONTROL PANEL

            • Control Panel Location: Center/Top
            • Control Panel Type: Touchpad, Drop-down 45° Angle
            • Display Type: LCD
            • Display Color: White on Black Background

            ADDITIONAL SPECIFICATIONS

            • Power Connection: 3-Prong Grounding Plug (included)
            • Power Ratings: 120V, 60Hz / 1.67kW, 14.5 Amps
            • Safety Compliance: FCC, DHHS, UL listed

            DIMENSIONS & WEIGHT

            • Cutout Dimensions: 28 7/16” x 15 9/16” x 23 1/2”

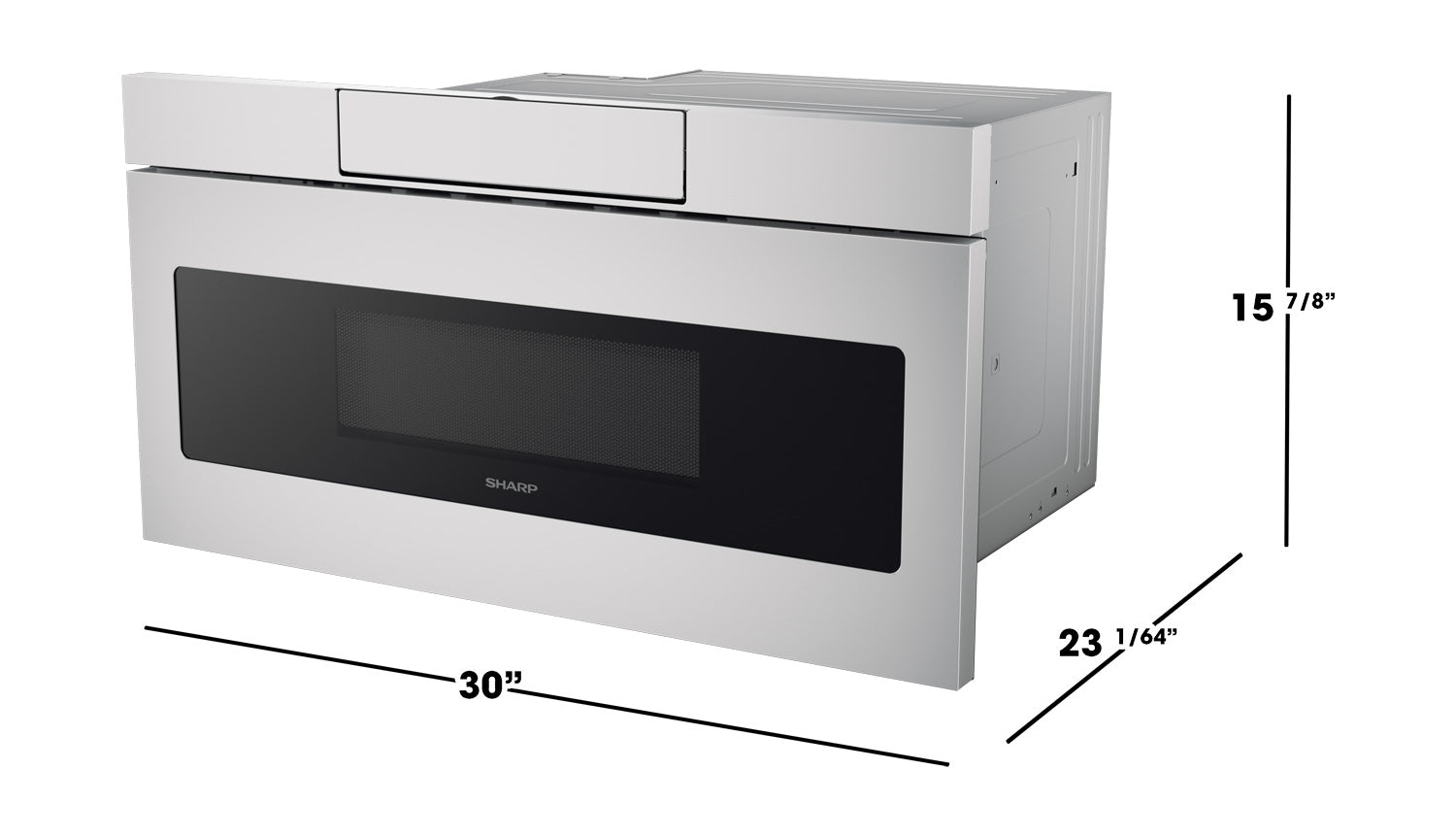

            • Product Dimensions: 30" x 15-3/4" x 23"
            • Shipping Weight: 91 lbs
            • Product Weight: 79 lbs

            WARRANTY/ UPC

            • Parts: 1 Year
            • Labor: 1 Year
            • Magnetron Tube: 5 Years total (part only)
            • UPC: 074000619579

            OPTIONAL ACCESSORY

            • 30" Flush Mount Deflector Vent: SKMD30F0AS
            • Flush Mount Deflector Vent Kit:
              • (1) PREF-B020MRP0
              • (2) LX-CZB055MRE0

            More Information

            30 in. 1.2 cu. ft. 950W Sharp Stainless Steel Microwave Drawer

            Focus on the design elements you prefer by removing the microwave from sightlines and enabling more design versatility. The SMD3070AS 30 inch Microwave Drawer offers flexible placement options below an island, peninsula or standard cabinetry, or can be installed below your wall oven. This Sharp Microwave Drawer allows you to showcase your design savvy and create a kitchen that flows with your lifestyle.

            The SMD3070AS Microwave Drawer allows you to choose a location that works for your lifestyle. Cooking is easier and faster when the Sharp Microwave Drawer Oven is installed adjacent to your food preparation area: in islands, peninsulas or under the counter. Available in 24-inch and 30-inch widths. Accessories available (SKMD24F0AS, SKMD30F0AS).

            The 30-inch Sharp Microwave Drawer Oven has been designed to complement the widest range of kitchen styles and appliances. The sleek, low-profile design and a stainless-steel finish beautifully complement any kitchen.

            The SMD3070AS Microwave Drawer Oven boasts an easy-to-read display that disappears until you need it. The concealed control panel opens at a 45-degree angle, so it’s easy to read and operate.

            Browse our full range of Sharp microwave drawers to find the right model for your home.



            Documents

            Operation Manual


            Spec Sheet


            Installation Manual


            Flush Mount Deflector Vent Installation
